		*THERMAL P/I CONTROLLER* Nelson Prototype Thermal P/I Controller Jeff Nelson Rev. 1.1 03/20/2014

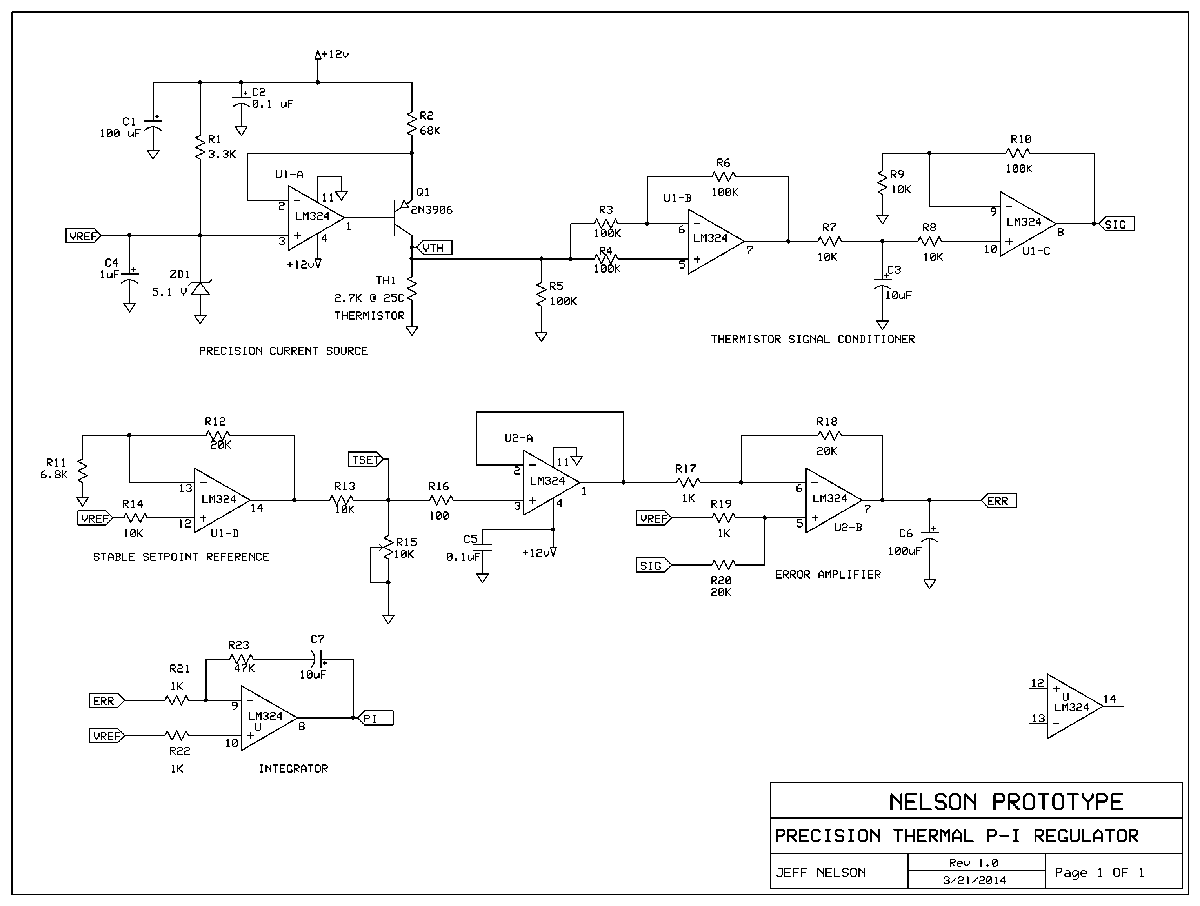

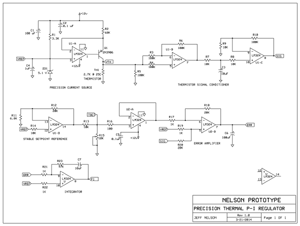

		What is the diagram for? It is a precision single supply thermal P/I controller. What does it do? It regulates temperature to your predetermined set point. If you replace the temperature sensor, you can use this basic design to control light intensity, speed, temperature, or just about anything you can measure, convert to electrical signals, and control. A Reference design Click for enlarged view.
