Design Schematics
GEIGER COUNTER
Nelson Prototype

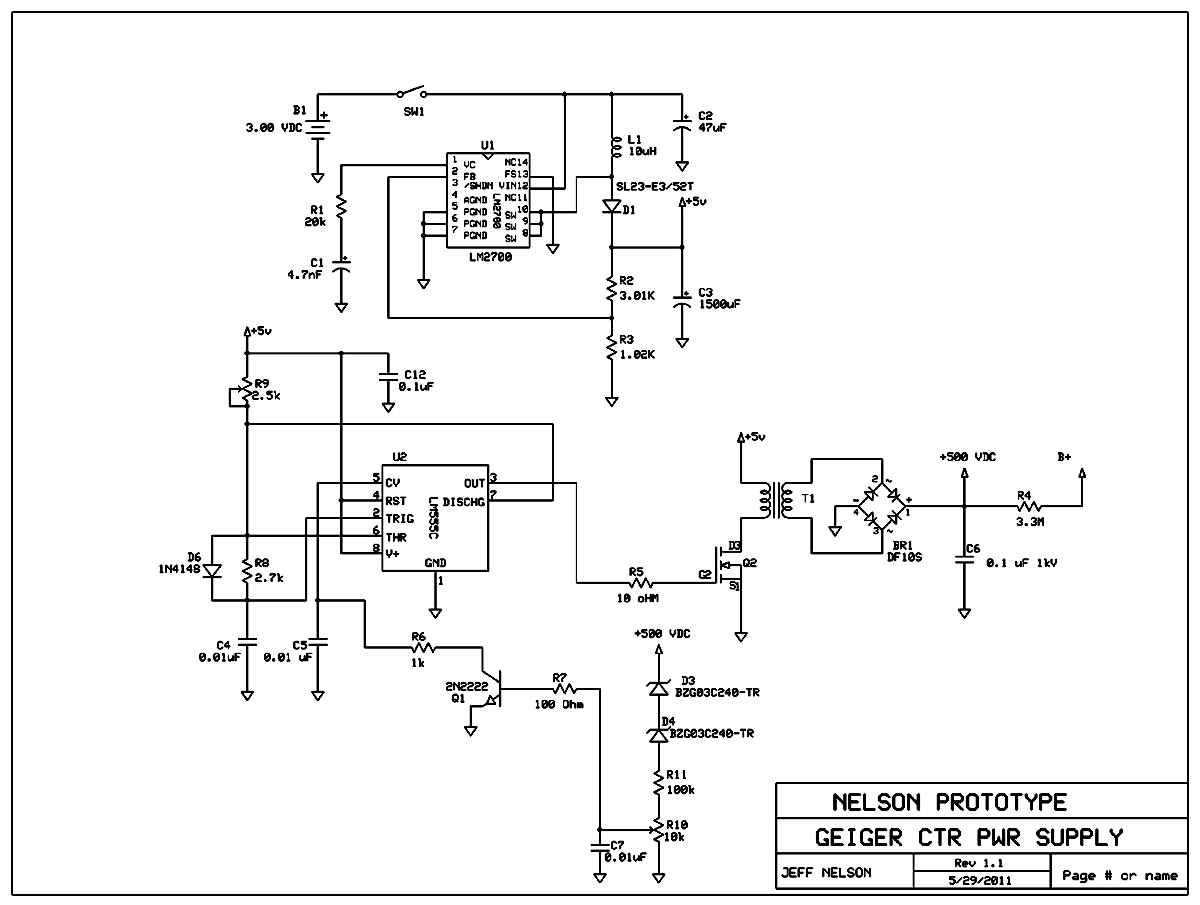

Geiger Counter Power Supply
Jeff Nelson
Rev. 1.1
05/29/2011

Click for enlarged view.

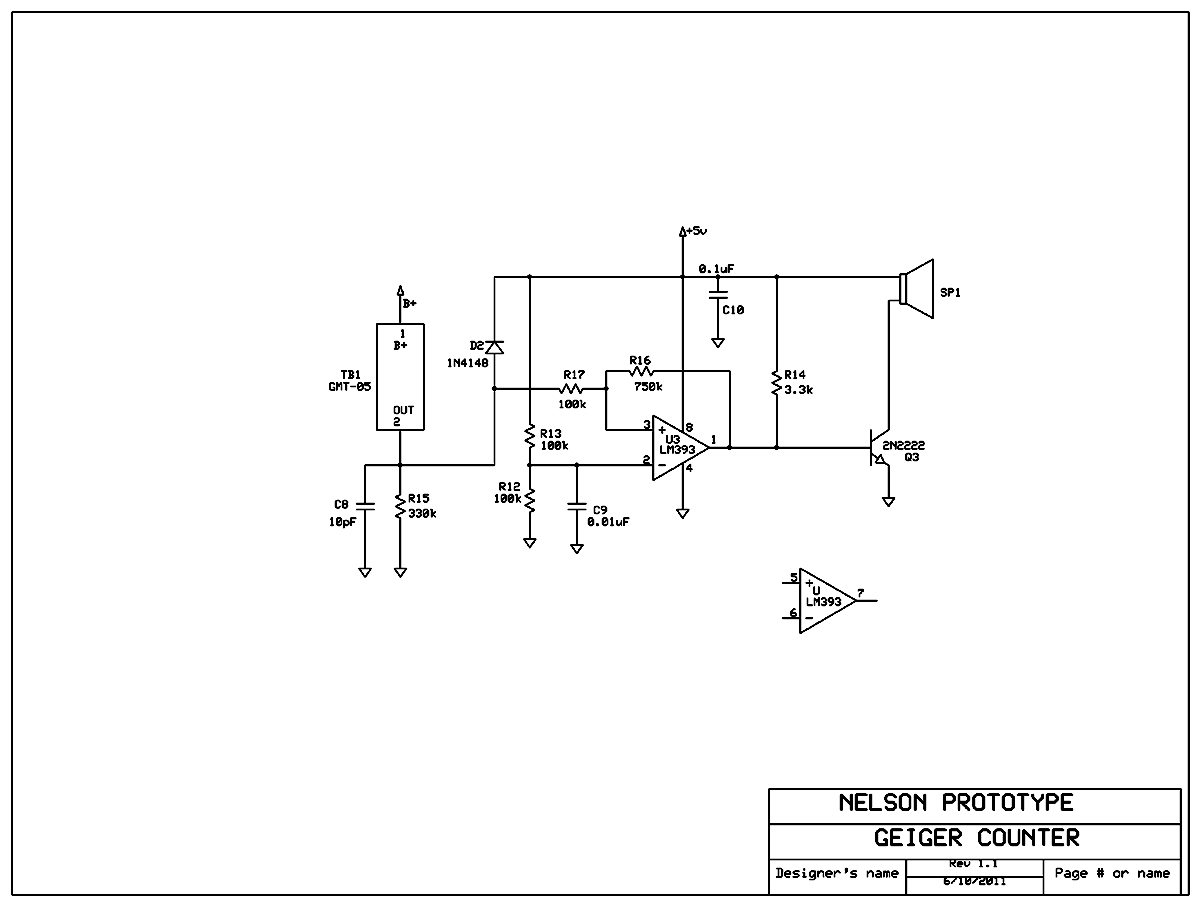

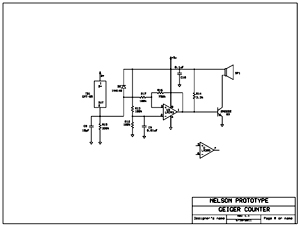

Geiger Counter Output Stage
Jeff Nelson
Rev. 1.1
06/10/2011

Click for enlarged view.

Geiger Counter in Project Box
Jeff Nelson
Rev. 1.1
05/29/2011

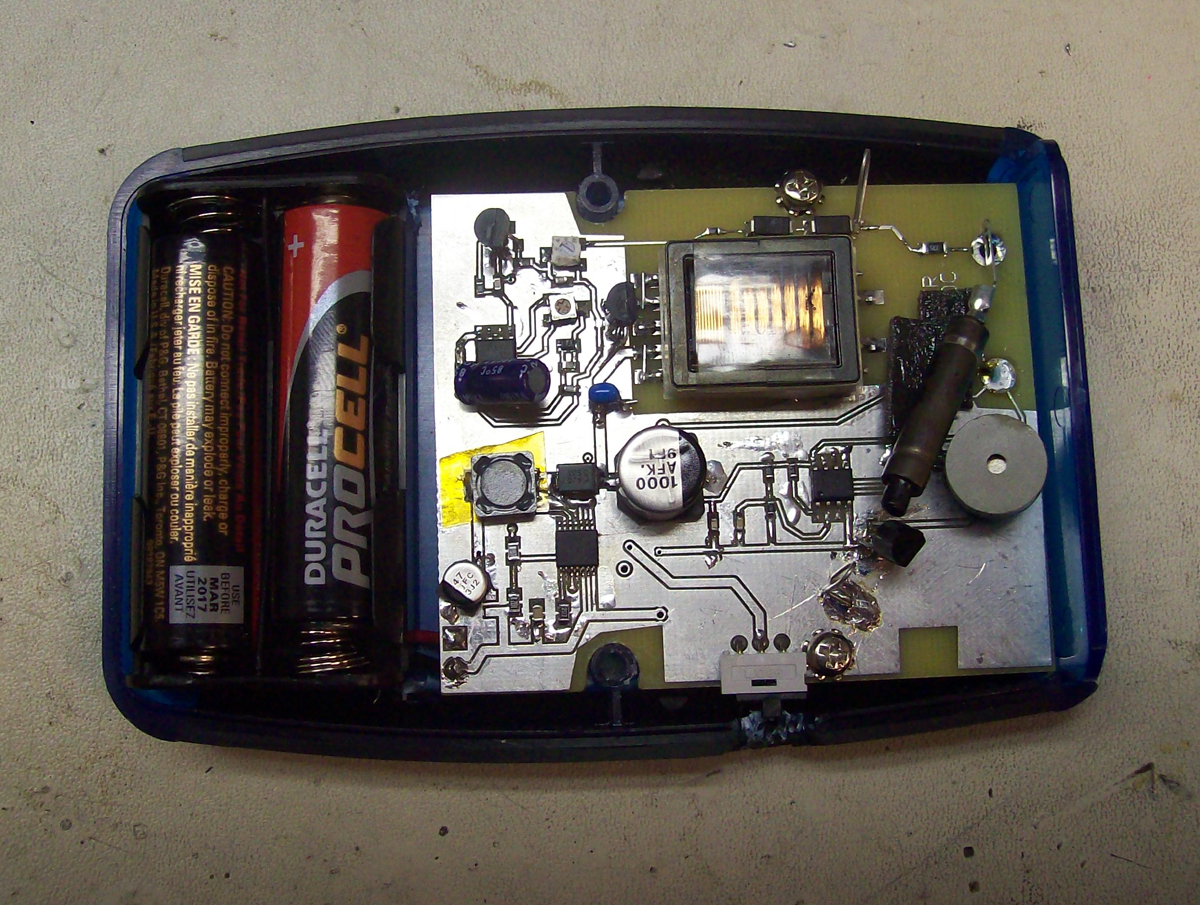

Protective Case / Open
Click for enlarged view.

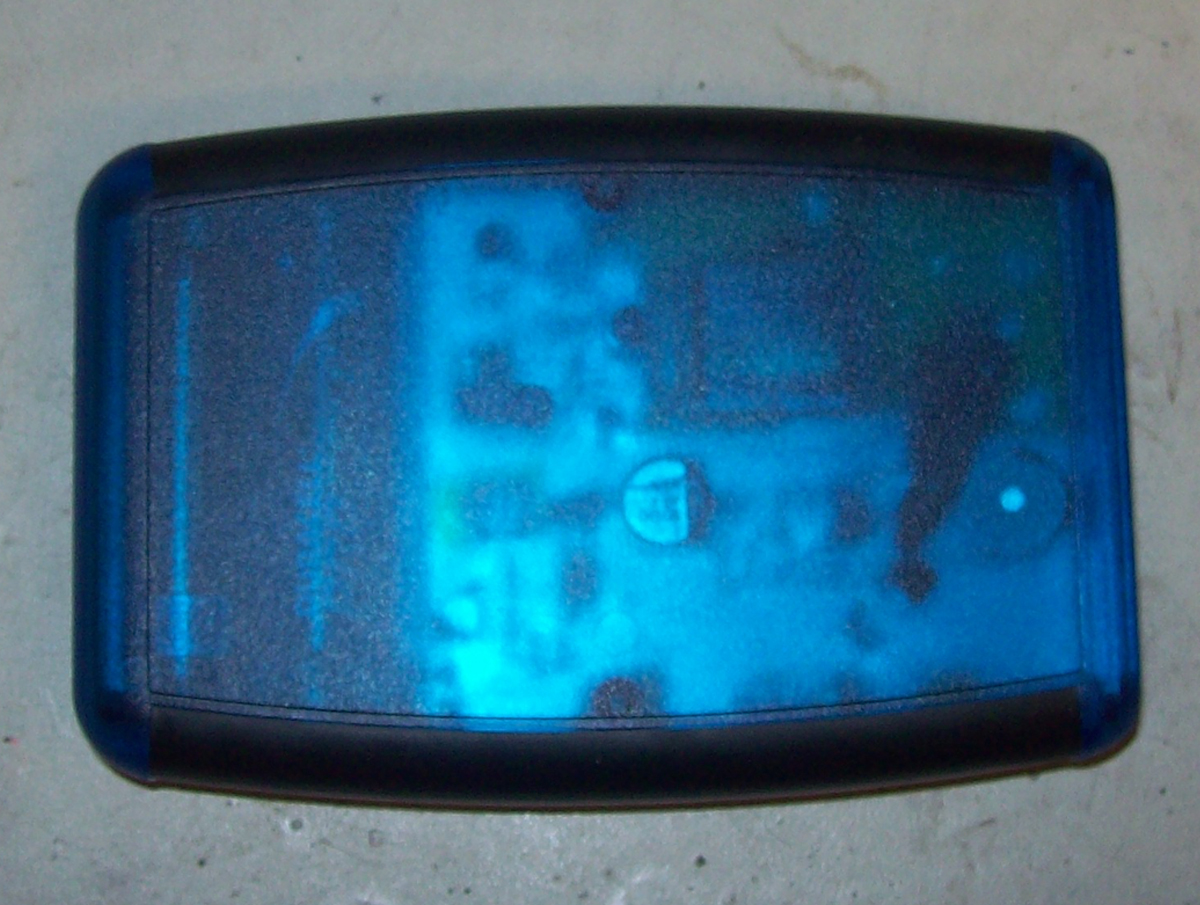

Protective Case / Closed
Click for enlarged view.
